The World's Most Advanced Triaxial Vibration Sensor SM7 Wireless Condition Monitoring

The SM7 is Waites’ most advanced AI-powered vibration sensor, delivering full-spectrum visibility, earlier fault detection, and insights you can act on with confidence.

sm7-wireless-mote-1
logo-Kohler-gray
OwensCorning
Diageo
InternationalPaper
Keurig
Altria
Nestle
Dhl
Tesla-1
Michelin
Nike

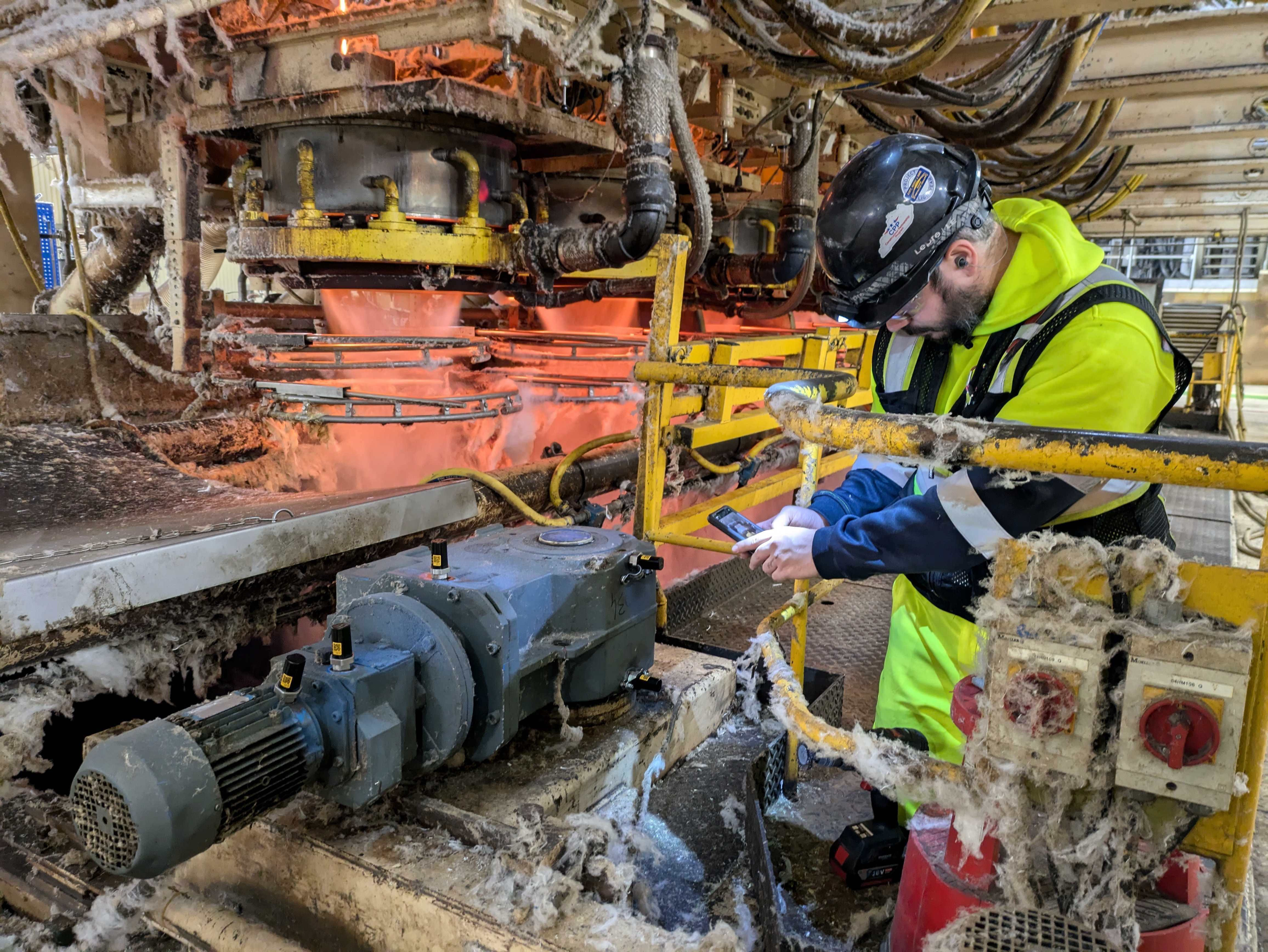

ENGINEERED FOR HARSH ENVIRONMENTS

WAITES SM7 TECHNICAL SPECIFICATIONS



SM7 Wireless Sensor

Wireless Monitoring

Fully wireless deployment

Data Acquisition

Triaxial vibration (±50G), 88 kHz sampling, 11.2 kHz Fmax, integrated temperature, wake-on-shake capture, and up to 50k LOR

Operating Range

-40°F to 185°F (-40°C to 85°C)*



*Peak battery capacitance optimal above -4F°/-20°C

Environmental Durability

Built to withstand moisture, dust, and chemical exposure

Certifications

CE, C2D1, C1D1, IP69K

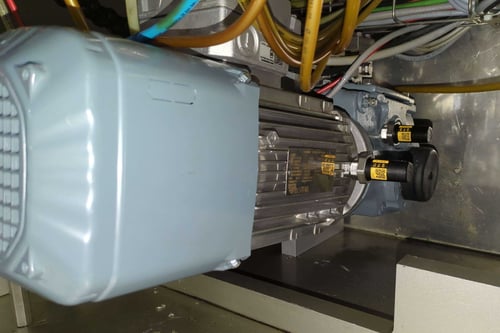

Slow-Speed Monitoring

Detects faults down to 1 RPM

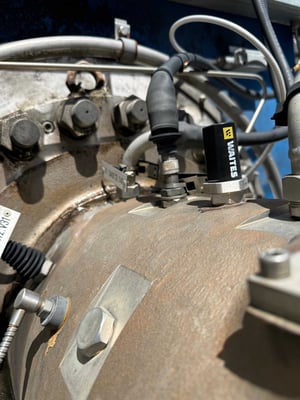

ImpactVUE® Ultrasonic Detection

Up to 44 kHz

Advanced Analytics

Microsecond-level multi-sensor synchronization

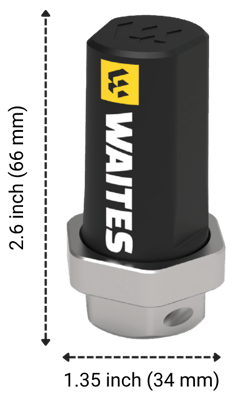

SM7-size-specs

FROM DATA TO DECISIONS, WITHOUT THE GUESSWORK

Early Fault Detection
Get early, accurate detection without alarm fatigue. Our AI models are trained on 13+ trillion machine readings, and when combined with expert analyst oversight, identify real failure patterns.

Prescriptive Insights
Make confident maintenance decisions using clear, prescriptive guidance from CAT II+ certified analysts who bring the accountability and clarity operations leaders expect.

Architecture That Scales
Keep equipment health in check with a high-density mesh network supporting thousands of sensors per gateway without signal degradation. Monitor individual assets, full facilities, or multi-site operations all within a single system.

DON'T TAKE OUR WORD FOR IT

Waites has become a core part of our reliability program. Across 600+ assets, we’re consistently detecting vibration-related issues early and addressing root cause issues, avoiding 483 hours of downtime in one year alone.

Matthew A. McLaughlin, CRE
Reliability Superintendent, Domtar

The metrics speak for themselves. I sleep at night because I'm not getting calls at 3 or 4 in the morning because a large piece of equipment has gone down.

Sr. Maintenance Manager
Automotive EV Manufacturer

Waites has changed how we plan maintenance. We can now schedule work on our terms instead of reacting to breakdowns.

Corporate Reliability Manager
Wood Products Manufacturer

Installing the Waites system was one of the easiest decisions we’ve made. It’s a small investment compared to the $11 million we saved.

Jelle Willems
Reliability Engineer, Owens Corning
mote

SENSOR MOTE

This high-frequency, high-G, 3-axis wireless vibration sensor will keep your equipment running properly, and alert you long before unexpected failures occur. This all-in-one condition monitoring device is rated intrinsically safe and made to withstand the harshest conditions, including C1D1 environments.

  • ​Advanced sensors designed for continuous, real-time equipment monitoring.
  • Detects vibration, temperature, and other key performance metrics to identify potential issues across 3 axes ​.​
  • Compact, durable, and easy to install on a wide range of equipment.
  • Collects accurate, high-frequency data to ensure comprehensive machine health analysis.
  • ​Built to withstand harsh industrial environments

02 DATA TRANSFERING

TETHERED SENSOR

The Waites tethered sensor is an ultra-compact, high-precision device that plugs directly into a node, enabling expanded coverage without requiring additional wireless connections. Its small form factor allows for placement in tight or complex spaces, ensuring comprehensive monitoring of critical assets while maintaining seamless data integration. Tethered sensors enable placement in hard to access locations including environments with high-speed rotating machinery and do not require batteries.

gateway
gateway

02 DATA TRANSFERING

WAITES UNIVERSAL ADAPTER

The Waites Universal Adapter is a powerful expansion tool that enables seamless integration with third-party sensors, allowing businesses to ingest additional data for a more comprehensive view of equipment health. By extending Waites’ predictive maintenance capabilities beyond its proprietary sensors, the Universal Adapter ensures organizations can leverage existing infrastructure while enhancing operational insights.

  • Broad Compatibility: Integrates with almost any third-party sensor to pull in critical equipment data.
  • Enhanced Equipment Visibility: Aggregates multiple data sources for a complete, real-time picture of asset health.
  • ​Scalable & Flexible: Captures data one type at a time, allowing targeted analysis without overwhelming systems. Can ingest any type of data – such as pressure and flow – and integrate it with the Waites system.
  • By utilizing the Waites Universal Adapter, organizations can maximize the value of their existing sensor investments while ensuring a holistic and proactive approach to predictive maintenance.



'OOPS' IS NOT A STRATEGY.

Eliminate unplanned downtime with Waites.

REQUEST A DEMO
